1xN Mechanical Fiber Optic Switch

Flyin Optronics’ 1xN Mechanical Fiber Optic Switch connects optical channels by redirecting an incoming optical signal into a selected output fiber. This is achieved using a patent pending opto-mechanical configuration and activated via an electrical control signal. The mechanical operation offers ultra-high reliability and fast switching speed as well as bi-directional performance. The MMS fiberoptic switches are true switching solutions for optical networking applications.

Channel:
Mode:
Voltage Type:
Control Model:
Fiber Type:
Fiber Diameter:
Fiber Length:
Connector:
Wavelength:
850nm
1310nm
1490nm
1550nm
1625nm
1650nm
1310/1550nm
Custom
Select at least one parameter!! or inquire now

Related Products

Description

Parameters

FeaturesApplications
Up to 128 channelsRing network
Low insertion lossRemote monitoring in optical network
Parallel interfaceTesting of fiber optical component
Modularized design
Epoxy free on optical path


Mechanical Dimensions

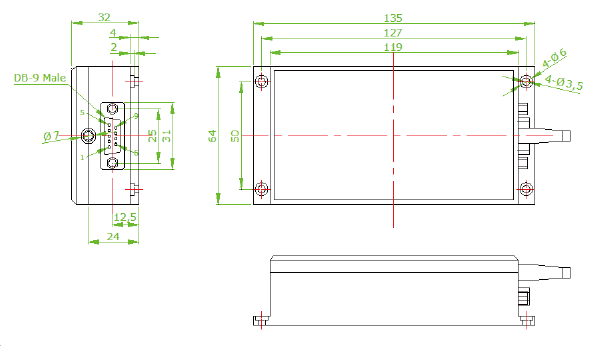

Optical RouteExample:135×64×32mm(n≤12,DB-9 male)



The production workshop show

Performance Specifications

ParameterFY-1XN
Insertion Loss(dB)1<N≤1216<N≤3232<N≤6464<N≤128
Type:0.8 Max:1.0Type:0.8 Max:1.0Type:1.2 Max:1.5Type:1.7 Max:2.0
Wavelength Range(nm)850nm,1260~1620nm
Operating Wavelength(nm)850/1310/1550/1625
WaveLength Dependent Loss(dB)≤0.25
Channel Crosstalk(dB)MM≥35 SM≥55
Return Loss(dB)MM≥30 SM≥50
Polarization Dependent Loss(dB)≤0.05
WaveLength Dependent Loss(dB)≤0.25
Temperature Dependent Loss(dB)≤0.25
Repeatability(dB)≤±0.02
Power Supply(V)5.0 or 12.0
Lifetime(time)≥10^7
Switch Time(ms)≤8
Transmission Power(mW)≤500
Operating Temperature(℃)-20~+70
Storage Temperature(℃)-40~+85
Dimension(mm)1<N≤12(135×64×32)12<N≤16(184×78×36)16<N≤32(140×77.5×64)31<N≤88(184×156×66)
88<N≤128(184×220×66)&nsbp;&nsbp;&nsbp;

1、Specifications may change without notice.

2、Above specification are for device without connector.

DB-9 male connector (max.1x8)

Pin No.signal NameI/ODescription
1D0InputTTL,Channel selection bit 0
2D1InputTTL,Channel selection bit 1
3D2InputTTL,Channel selection bit 2
4D3InputTTL,Channel selection bit 3
5/RESETInputTTL,Low level reset to channel 0.Highh leve means channel selection bits are effective.
6/READYOnputTTL,Ready(High=Not ready,Low=Ready).
7ERROROnputTTL,Error(High=Error,Low=Not error).
8GNDInputGround
9+5VDCInput5.0±5% VDC Power Supply(max 550mA)

Channel Selection Table

Max ChannelInputActive Channel
/RESETD6D5D4D3D2D1D0
N=160xxxxxxx0 reset
1xxx0000com → 1
xxx0001com → 2
xxx0010com → 3
xxx···············
xxx1111com → 16
